L298N IC: A Comprehensive Guide

Introduction:

    In the world of electronics and robotics, integrated circuits (ICs) play a pivotal role in simplifying complex tasks and enabling efficient designs. One such versatile IC is the L298N, renowned for its ability to control and drive motors with ease. Whether you're a beginner hobbyist or a seasoned engineer, understanding the capabilities and applications of the L298N IC can significantly enhance your projects. In this blog, we'll delve into the features, working principle, applications, and tips for using the L298N IC effectively.

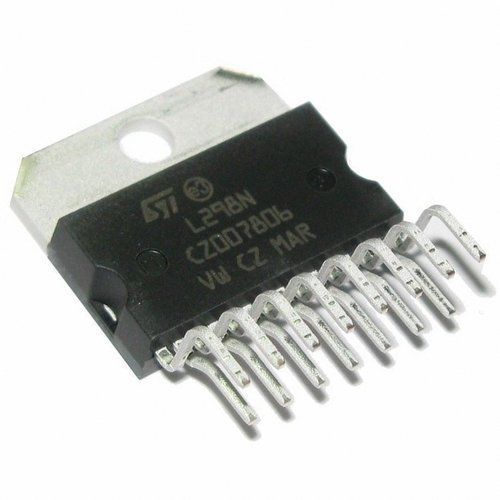

Understanding the L298N IC:

    The L298N is a dual H-bridge motor driver IC designed to control and drive DC motors or stepper motors. It's commonly used in robotics, automotive systems, industrial automation, and various other applications that require precise motor control. The IC can handle high currents (up to 2A per channel) and supports voltage inputs ranging from 5V to 46V, making it suitable for a wide range of motor types.

Key Features:

1. Dual H-Bridge Configuration: The L298N consists of two H-bridge circuits, which allows it to control two motors independently or a single motor with bidirectional control.
2. Built-in Protection Diodes: The IC includes internal diodes that help protect against back electromotive force (EMF) generated by the motors when they are turned off, preventing damage to the IC.
3. Enable Pins: Each motor channel has an enable pin, which can be used to control the speed of the motor using pulse-width modulation (PWM) signals.
4. Current Sensing: The L298N has a current sensing feature that allows you to monitor the current flowing through the motors, aiding in troubleshooting and preventing overheating.
5. Logic Inputs: The IC is controlled by logic inputs (IN1, IN2, IN3, and IN4) that determine the motor direction (forward, reverse) and braking.
6. OPERATING SUPPLY VOLTAGE UP TO 46 V .
7. TOTAL DC CURRENT UP TO 4 A
8. LOW SATURATION VOLTAGE . OVERTEMPERATURE PROTECTION
9. LOGICAL "0" INPUT VOLTAGE UP TO 1.5 V (HIGH NOISE IMMUNITY)

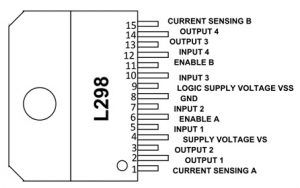

PIN configuration:



Working Principle:

    The L298N works based on the H-bridge configuration, which consists of four switches that can be controlled independently. By toggling these switches, the direction of the current through the motor can be changed, allowing for bidirectional movement. The enable pins, when combined with PWM signals, regulate the motor's speed by controlling the effective voltage applied to the motor.

Applications:

1. Robotics: The L298N is widely used in robotic platforms to control wheels and joints, providing precise and smooth movement.

2. RC Vehicles: Hobbyists use the IC to power and control motors in remote-controlled cars, drones, and boats.

3. CNC Machines: The L298N can be used in CNC machines to control the movement of axes, enhancing precision in machining.

4. Automotive Systems: It's employed in window control systems, mirror adjustment, and motorized seats.

5. Industrial Automation: The IC finds application in conveyor belt systems, automated doors, and other industrial machinery.

6. Home Automation: The L298N can be integrated into smart blinds, curtains, and other home automation projects.

Tips for Effective Use:

1. Power Supply: Ensure the power supply voltage matches the motor's voltage requirement, and provide adequate current for optimal performance.

2. Heat Dissipation: The IC can get hot during operation, so consider using heat sinks or providing proper ventilation.

3. Current Limiting: Implement current limiting measures to prevent overheating and protect the IC and motors from damage.

4. Logic Levels: Make sure to provide appropriate logic-level inputs to the IC to ensure proper functioning.

5. EMI Considerations: Motors can generate electromagnetic interference (EMI), so keep signal lines away from high-power areas and use noise filters if necessary.

Conclusion:

The L298N IC is a versatile and indispensable component in the realm of motor control and robotics. Its dual H-bridge configuration, current sensing capabilities, and ease of use make it a popular choice among hobbyists and professionals alike. By understanding its features, working principle, applications, and best practices, you can harness the full potential of the L298N IC to bring your projects to life with precision and efficiency.
