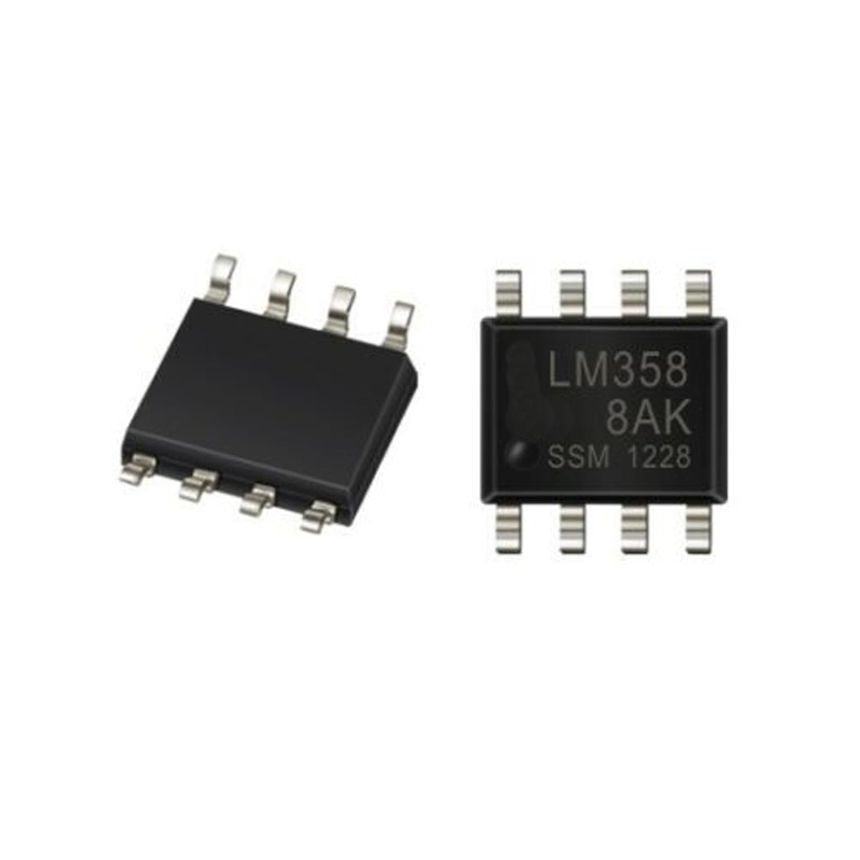

LM358 Operational Amplifier
Introduction:
In the intricate world of electronics, the LM358 operational amplifier (op-amp) emerges as a fundamental component, enabling precise signal manipulation. Its versatility, widespread use, and ease of integration make it a staple in countless circuit designs. This guide will delve into the features, working principles, applications, and optimization tips for harnessing the LM358 op-amp's potential. The LM358 is a dual-channel, low-power op-amp that serves as a cornerstone in analog signal processing. Its ability to amplify, filter, and manipulate signals is integral to various applications, from audio circuits to instrumentation.
Key Features:
1. Dual Op-Amp Package: The LM358 contains two independent op-amps in a single package, enabling versatile circuit configurations and minimizing space requirements.
2. Low Input Offset Voltage: Minimizes signal distortion by reducing the voltage difference between input terminals.
3. Low Quiescent Current: Suitable for battery-powered applications, as it consumes minimal current when idle.
4. Wide Voltage Supply Range: The LM358 can operate with a broad range of power supply voltages.
5. Straightforward Biasing: Simple input biasing facilitates easy integration into various circuit designs.
Functionality and Working Principles:
The LM358 op-amp amplifies the voltage difference between its inputs. It operates linearly for small signals, saturating at certain thresholds. The gain (A) represents the factor by which the op-amp amplifies the input signal.
Applications:
1. Signal Amplification: Amplifies weak sensor signals for further processing.
2. Filtering: Used in active filter circuits to eliminate noise and undesired frequencies.
3. Signal Conditioning: Prepares signals for analog-to-digital conversion.
4. Voltage Comparators: Configured to compare voltages and trigger events.
5. Oscillator Circuits: Generates periodic waveforms for various applications.
6. Voltage Follower: Provides impedance isolation between input and output.
Optimization Tips:
1. Datasheet Consultation: Always refer to the LM358 datasheet for precise specifications, application notes, and configuration guidelines.
2. Feedback Network: Choose appropriate resistor values for desired amplification and stability.
3. Bypass Capacitors: Include bypass capacitors near power supply pins for noise reduction and stability.
4. Slew Rate and Bandwidth: Understand these parameters to prevent signal distortion and ensure optimal performance.
5. Input Voltage Range: Stay within the specified input voltage range to avoid saturation and clipping.
Pinout:
The LM358 comes in an 8-pin DIP (Dual Inline Package) configuration with the following pinout:
1. IN- (Pin 1): Inverting Input of Op-Amp 1
2. IN+ (Pin 2): Non-Inverting Input of Op-Amp 1
3. GND (Pin 3): Ground
4. V- (Pin 6): Negative Supply Voltage
5. OUT (Pin 7): Output of Op-Amp 1
6. V+ (Pin 8): Positive Supply Voltage
Conclusion:
The LM358 operational amplifier, though seemingly simple, possesses immense potential in analog signal processing. Its role in amplification, filtering, and beyond is undeniable. By understanding its features, applications, and optimization techniques, you can wield the LM358 op-amp effectively, whether you're crafting a basic audio circuit or designing a complex analog system.
Datasheet: For detailed technical information, consult the datasheets LM358
